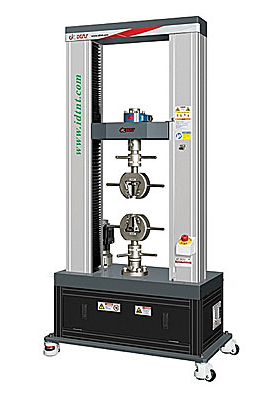

New Universal Material Tester DTU-M Series

---



Daekyung Tech's new DTU-M series mechanical universal material tester.

ASTM A 370
ASTM A 1016
ASTM A 193 / 194
ASTM D 790
ASTM D 638
ASTM E23
ASTM E8M
EN ISO 6892

CE Certification (Electromagnetic/MD)

It is designed to be suitable for testing various samples such as metal, rubber, and bolts according to the standards of .

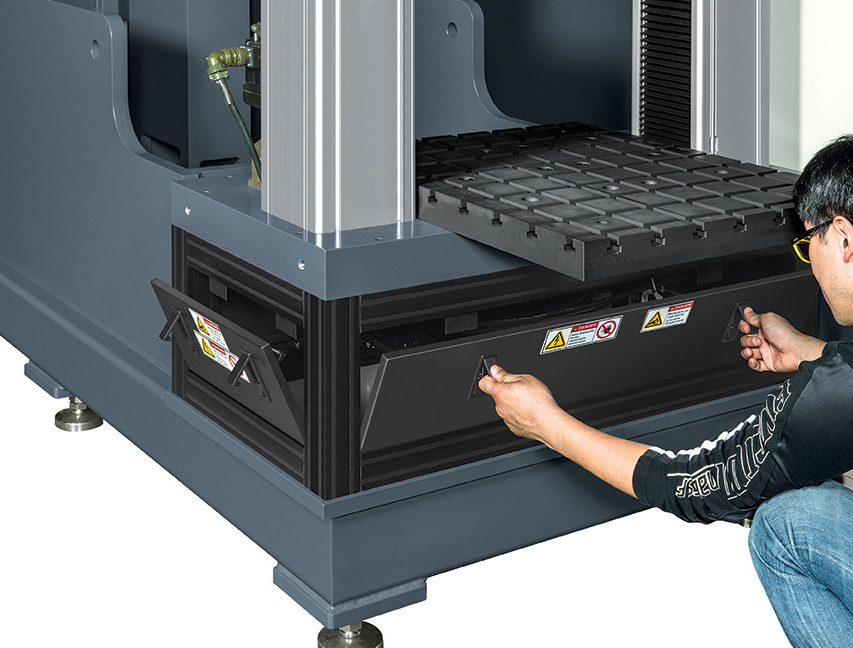

The lower part of the product is designed to open in three directions as shown in the picture above.

And the motor driver and control parts of the machine are all placed on the rack on the rail, enabling easy and convenient maintenance.

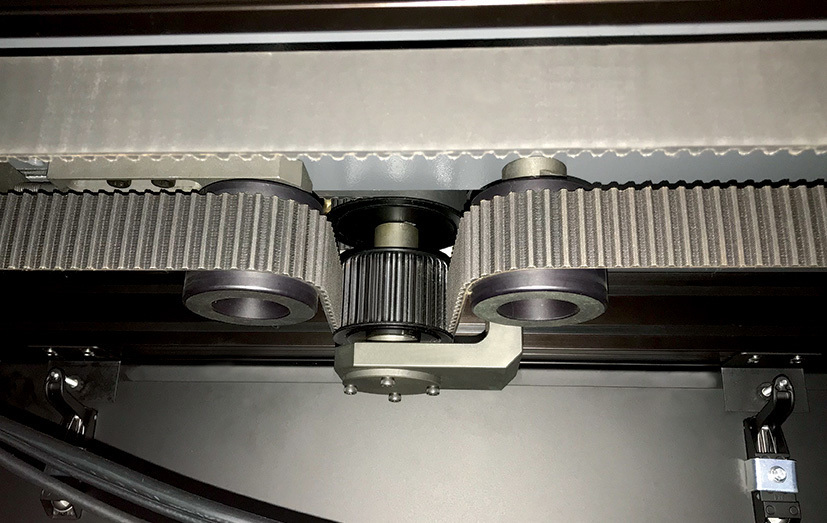

precise drive

---



Designed for precise and quiet driving with belt drive.

It can implement the precision of international standards and is advantageous for maintaining loads

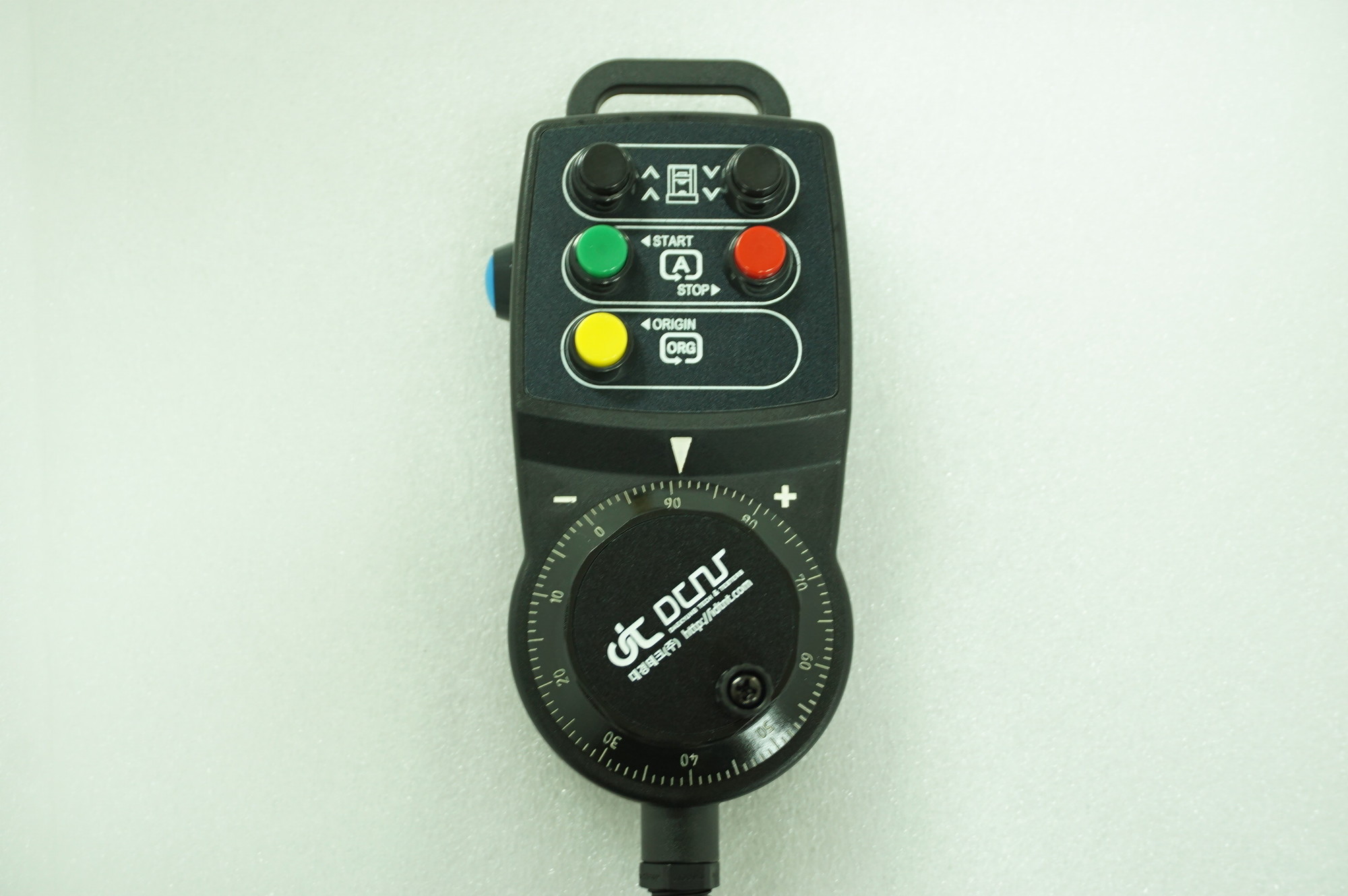

More advanced remote control

---



The new remote control with the jog button moves a displacement of 0.005 mm (based on 100 kN) per click.

It can be conveniently used to reposition or remove the initial load of the fine crosshead after biting the sample.

Even during calibration, this jog button can be used for precise load control and maintenance.

In the case of repeated tests of the same sample, the test can be retested immediately without going through the program using the test start button.

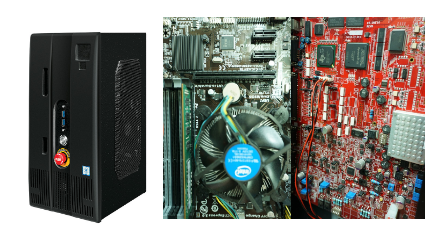

New Controller Board

---



The new DSP CONTROLLER (DTX-2000) is the second generation model of the existing DTX-1000.

Daekyung Tech can accurately implement load speed control and elongation speed control by developing and using its own board to meet the test conditions suitable for ASTM StandARD.

In addition, we have secured data processing speed that does not fall apart from overseas brands.

The computer and controller were integrated into one package to minimize space charge.

By setting the torque limiter, the possibility of damage to the load cell is minimized, and noise control is possible.

You can also remember the absolute position and always place the crosshead where you want it after the reboot

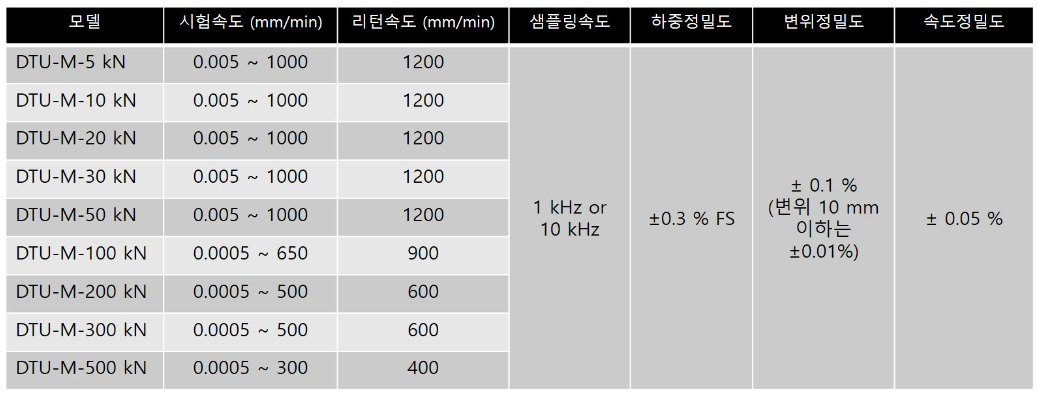

DTU-M Standard Specification


---



                  MODEL                       SPEED                                 RETURN                       SAMPLING               FORCE                 DISPLACEMENT              SPEED

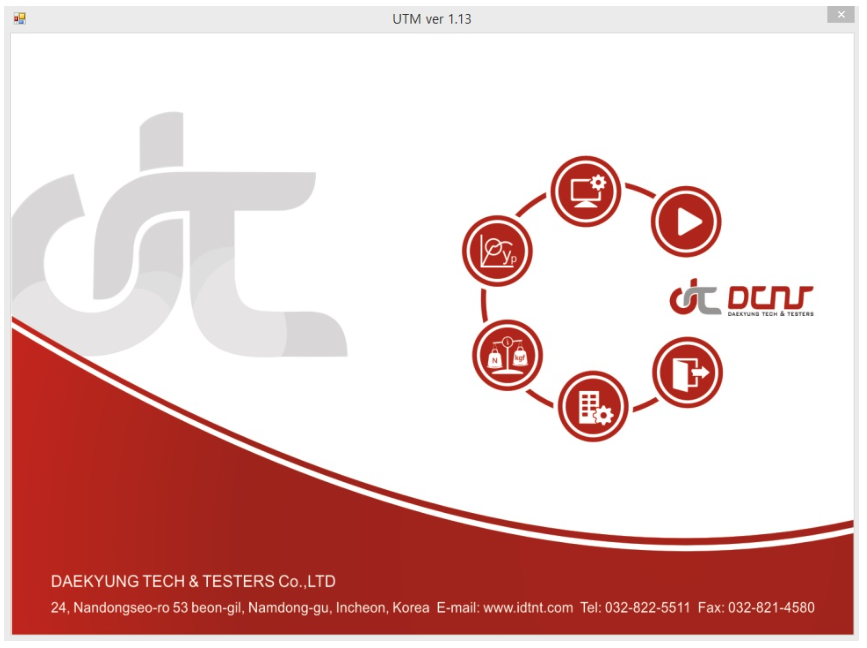

Innovative software - HIVE

---



Let me introduce the newly created program-HIVE with 30 years of experience.

We designed a library system to allow new workers to test quickly and safely.

If you set the test conditions for each sample and save them in the library folder, you can call them out at any time and immediately test them according to those conditions.

Multiple workers can experience problems in a test machine handling environment due to incorrect use, or innovatively reduce the time it takes for new users to handle the test machine.

You don't need to repeat the complicated process anymore if you just store it in the library folder by sample type.

다.




* Save the conditions and titles to the library system.

 * Library System

 - the title of an examination
 - Tensile/Compression/Repeated Decisions
 - Determining the Type of Specimen
 - Speed Settings
 - Special conditioning (load maintenance and lamp interval tuning)

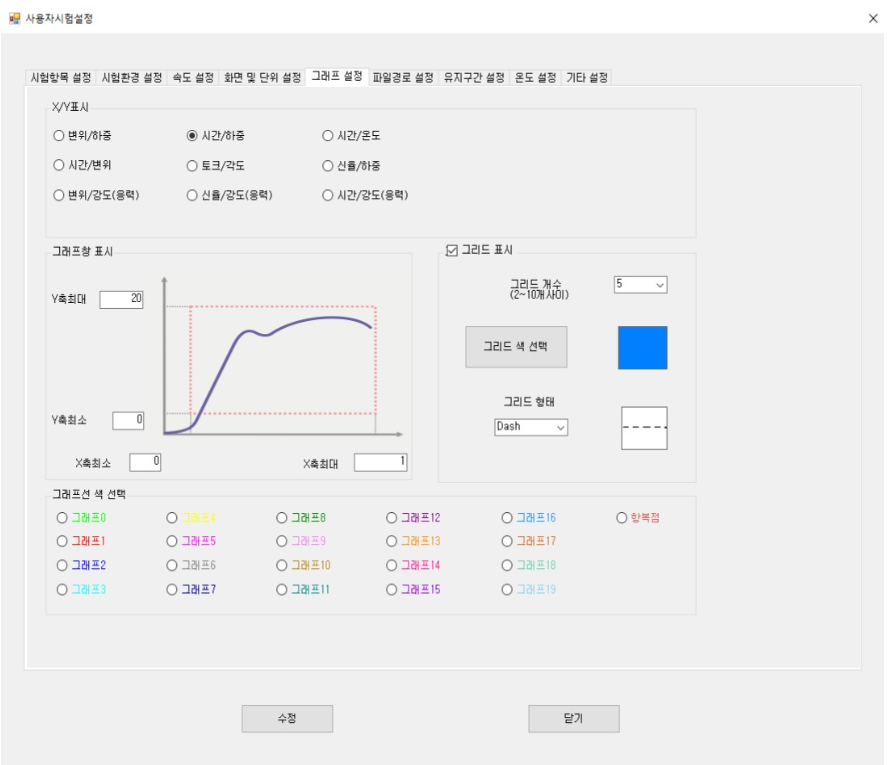

 - Graph and Unit Settings
 - Set the movement of the crosshead after the test
 - Set file save interval

* The test conditions stored in the library system can be retrieved and tested immediately, and all test contents are automatically saved in a folder.



Automatic OFFSET yield point search
Poisson Ratio Measurement
R-Value Measurement
Automatic Modulus Discovery

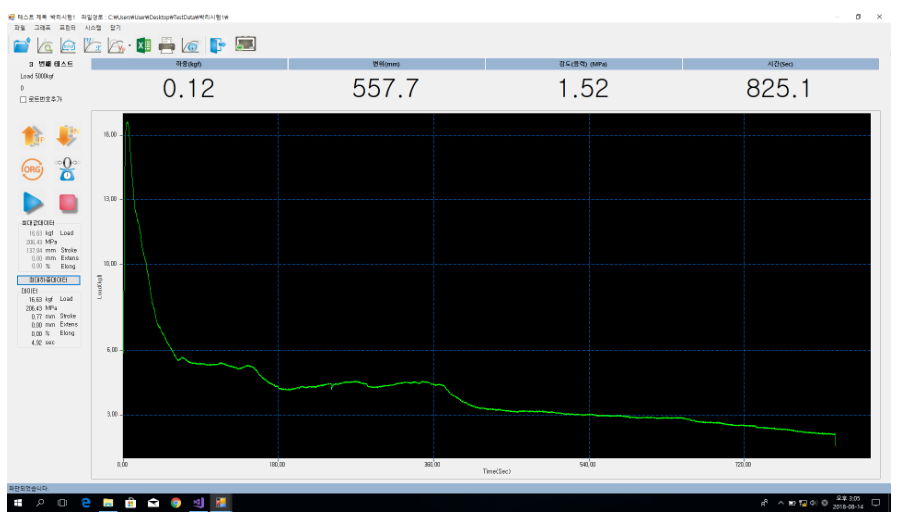

load retention test
multistage speed test
a simple cycle test
Test for application of high temperature/environmental chamber
Switching data to Excel
