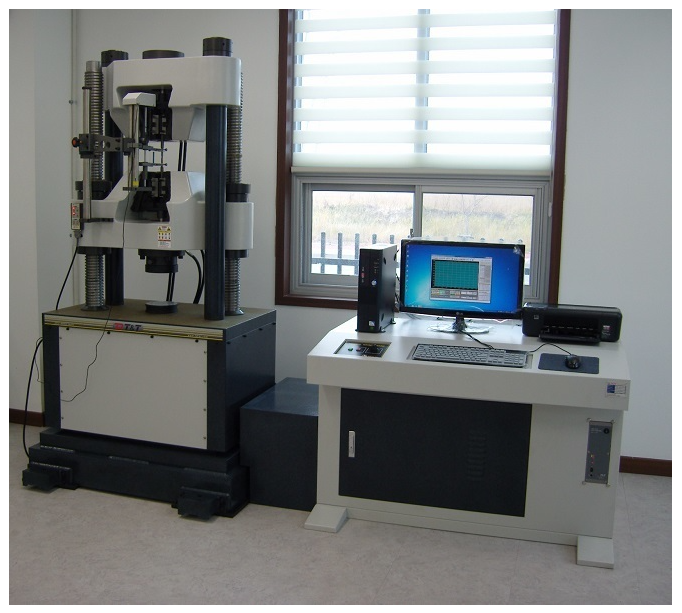

DTU-HS series



The DTU-HS series is an entry-level model of the H series.

Both models share the same test specification, but the HS series is generally small if the stroke is 50 mm shorter.

Only models of 500 kN and 1 MN can be manufactured, and it is easy to use by companies using standard specimens.

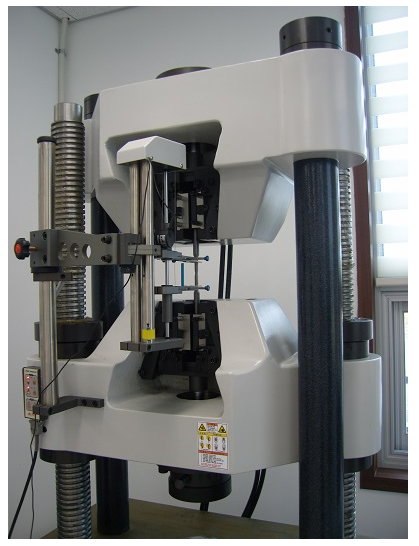

Not only the main cylinder that imposes a load, but also the chuck that holds the sample is operated with a small hydraulic cylinder.

The main cylinder's testable MAX.STROKE is 150 mm.

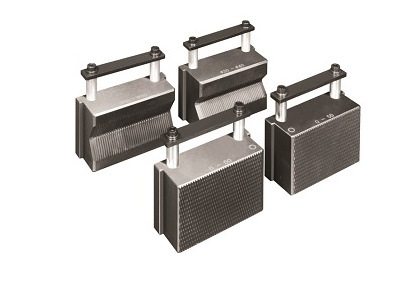

Standard jaw size

Capacity                Flat              Round bar
500 kN                  40 mm               12~35 Ø
1 MN                     50 mm               20~65 Ø

Test speed   : 0.1~80 mm/min
Accuracy of load : ± 0.4 %
Accuracy of speed : ± 1.5 %

AC 220V 3ph or AC 380V, 3

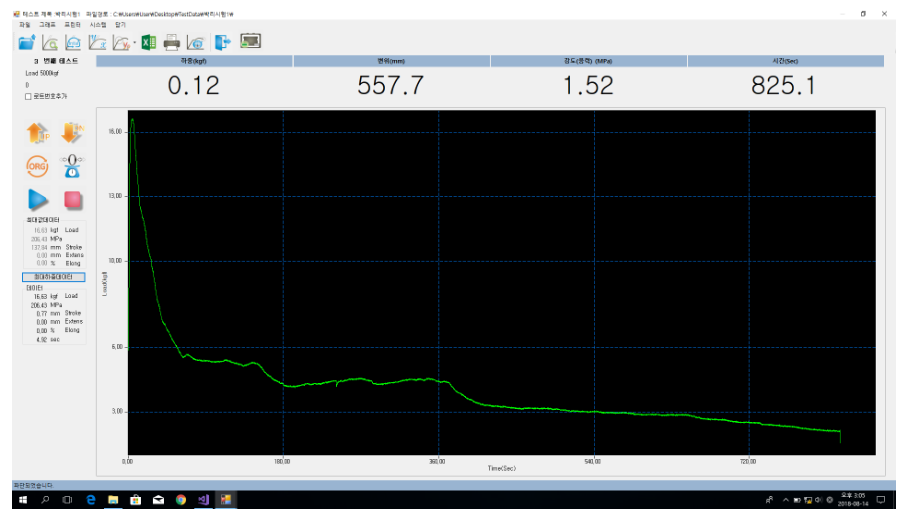

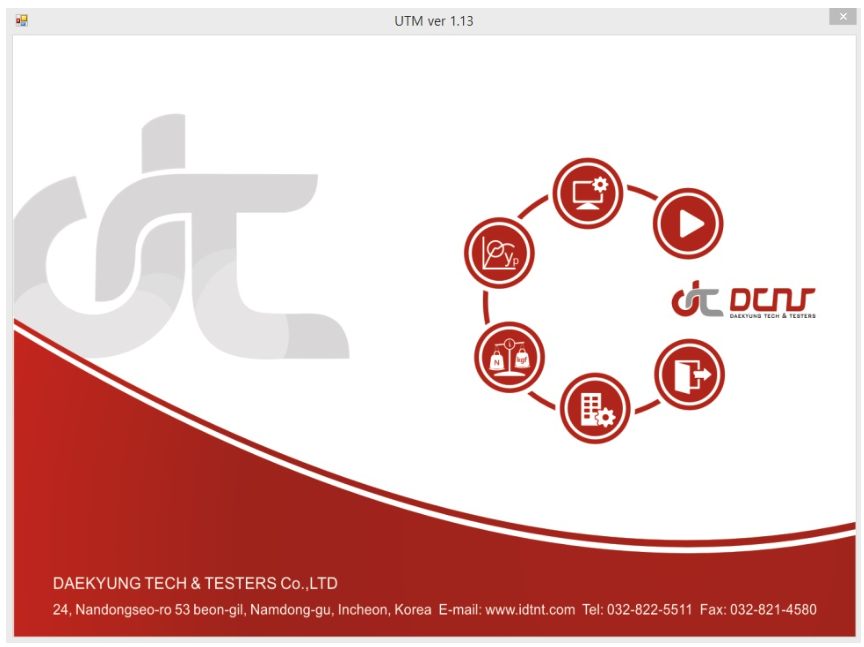

Innovative software - HIVE

---



Let me introduce the newly created program-HIVE with 30 years of experience.

We designed a library system to allow new workers to test quickly and safely.

If you set the test conditions for each sample and save them in the library folder, you can call them out at any time and immediately test them according to those conditions.

Multiple workers can experience problems in a test machine handling environment due to incorrect use, or innovatively reduce the time it takes for new users to handle the test machine.

You don't need to repeat the complicated process anymore if you just store it in the library folder by sample type.



* Library System

 - the title of an examination
 - Tensile/Compression/Repeated Decisions
 - Determining the Type of Specimen
 - Speed Settings
 - Special conditioning (load maintenance and lamp interval tuning)
 - Graph and Unit Settings
 - Set the movement of the crosshead after the test
 - Set file save interval


* The test conditions stored in the library system can be retrieved and tested immediately, and all test contents are automatically saved in a folder.



Automatic OFFSET yield point search
Poisson Ratio Measurement
R-Value Measurement
Automatic Modulus Discovery
load retention test
multistage speed test
a cycle test
Test for application of high temperature/environmental chamber
Switching data to Excel
