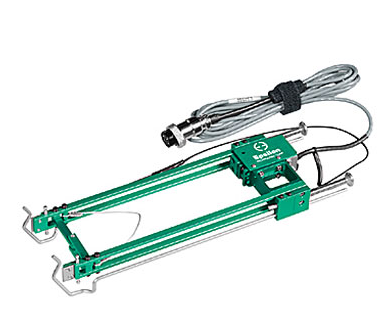

It is a strain gauge type extensometer mainly used for metal samples.

* Daekyung Tech Co., Ltd. is working with Epsilon Tech in the United States.

It is a SELF STANDING extensometer that is attached directly to the sample, and it is removed when the yield point of the sample has passed.

Various extensometers are available depending on the shape of the sample, the distance of the mark, and the range in which the sample increases.

Excitation: 5 to 10 VDC recommended, 12 VDC or VAC max.

Output: 2 to 4 mV/V, nominal, depending on model

Linearity: ≤0.15% of full scale measuring range

Temperature Range: Standard (-ST) is -40 °C to +100 °C (-40 °F to 210 °F)

Cable: Integral, ultra-flexible cable, 2.5 m (8 ft) standard

Standard Quick Attach Kit: Fits round samples up to 25 mm (1.0 inch) diameter and flats up to 12 mm thick by 31 mm wide (0.5 inch by 1.25 inch); attach to larger specimens using rubber bands or springs (included)

Operating Force: 30 g typical
