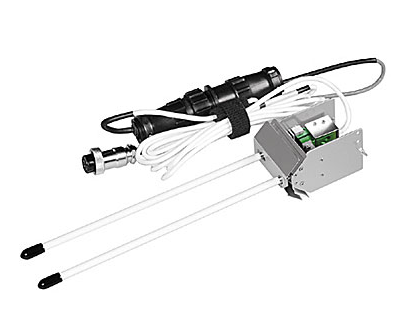

DTU-M-AC-210

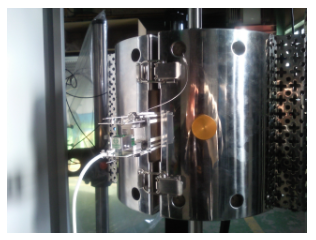

Orders can be placed from 10mm to 50mm (G.L) and can only be used if the hot furnace has a space to mount the renal meter.

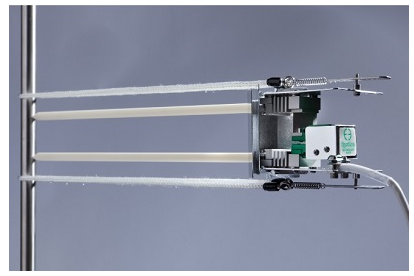

It is a SELF STANDING type that attaches directly to the sample without a separate jig or fixture.

Excitation: 5 to 10 VDC recommended, 12 VDC or VAC max.

Output: 2 to 4 mV/V, nominal, depending on model

Linearity: ≤0.15% of full scale measuring range, depending on model

Temperature Range: Ambient to 1200 °C max (2200 °F), all versions

Cable: Integral, ultra-flexible cable, 2.5 m (8 ft) standard

Contact Force: Adjustable, approximately 200 g depending on configuration

Operating Force: 10 to 20 g typical
