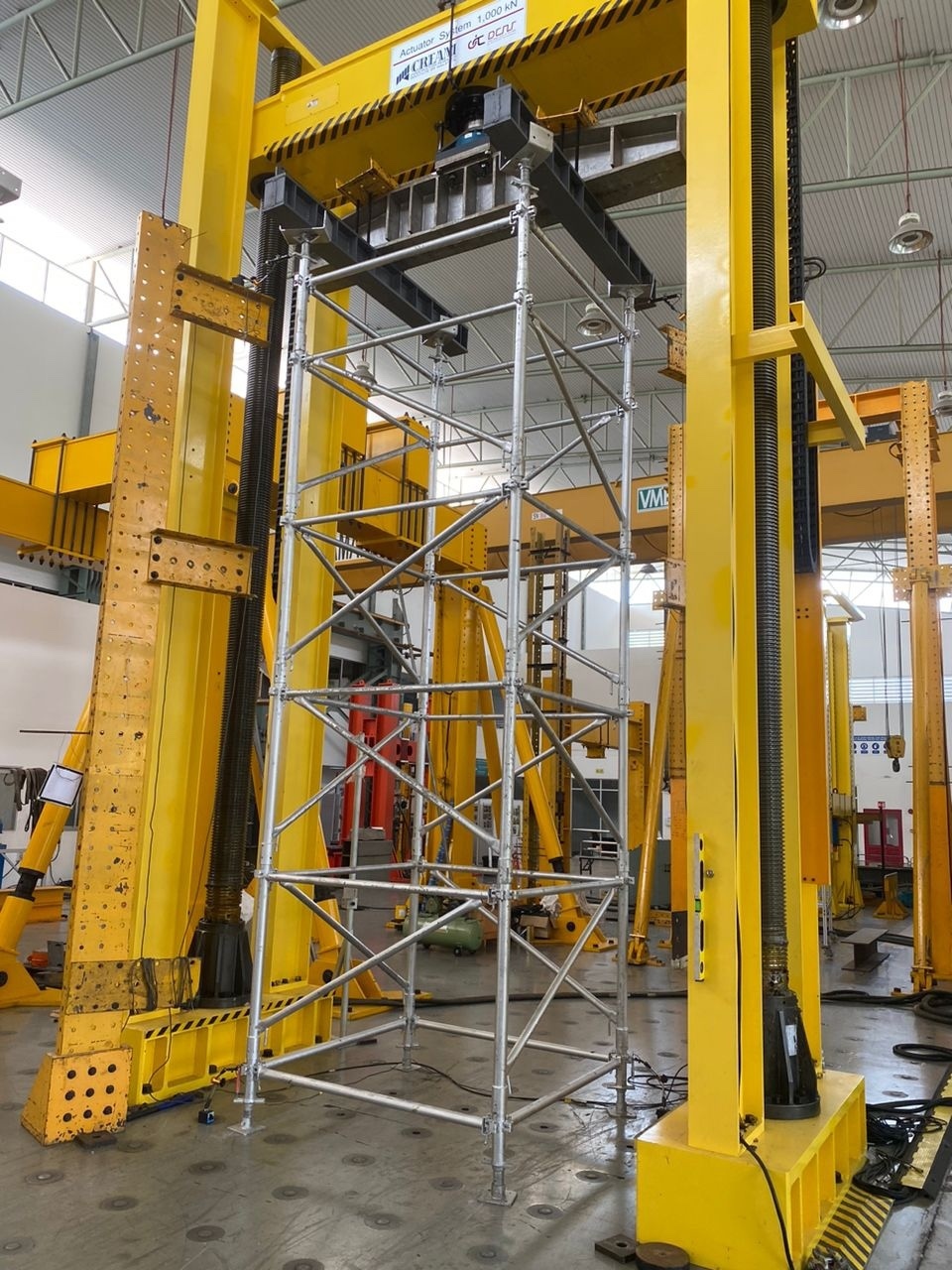

Scaffold compression tester

Designed to test the compression strength of scaffold.

Equipped with movable crosshead and it will reduce test speed dramatically and even one engineer can operate machine.

Specification.

Capacity : 100 Ton

Test space : 6.5 meter

12 channels for LVDT sensor

Deflection at 100 ton full loading : less than 3 mm

Crosshead control : wireless remote controller

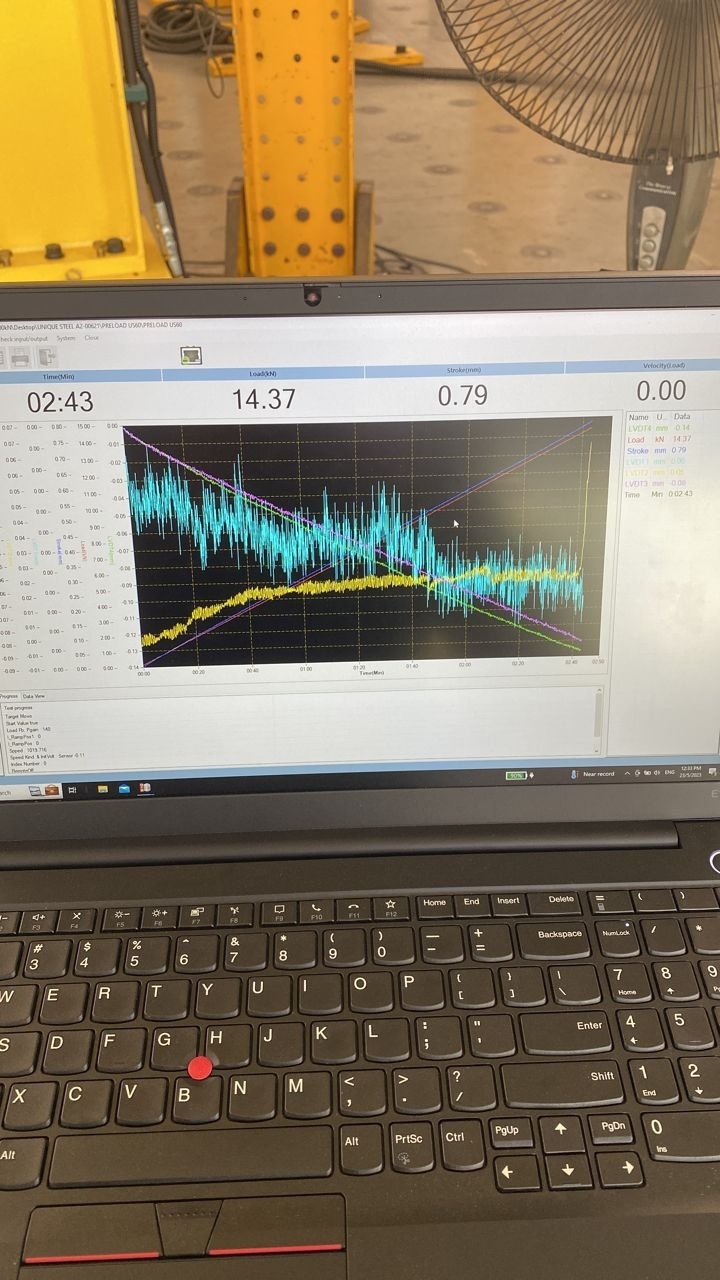

Software : Designed to perform scaffold test process

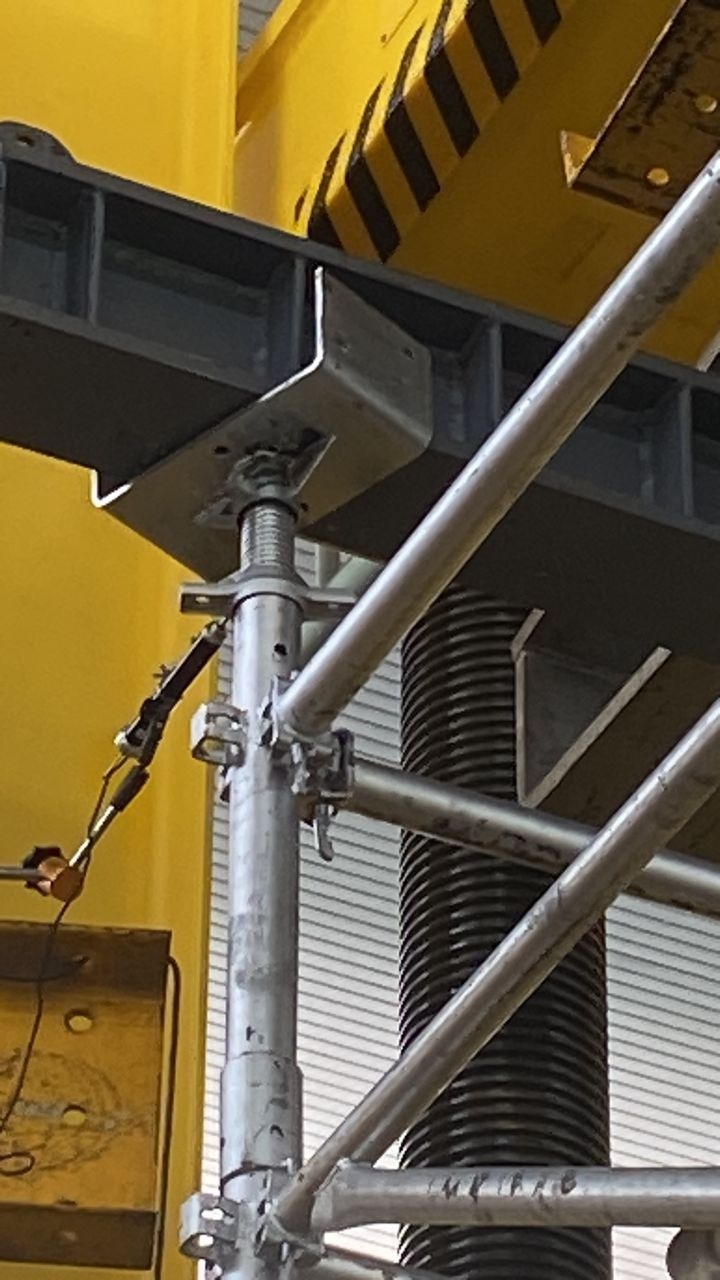

Photos
