Torque meter calibrator
모델명 : 2 kN.m

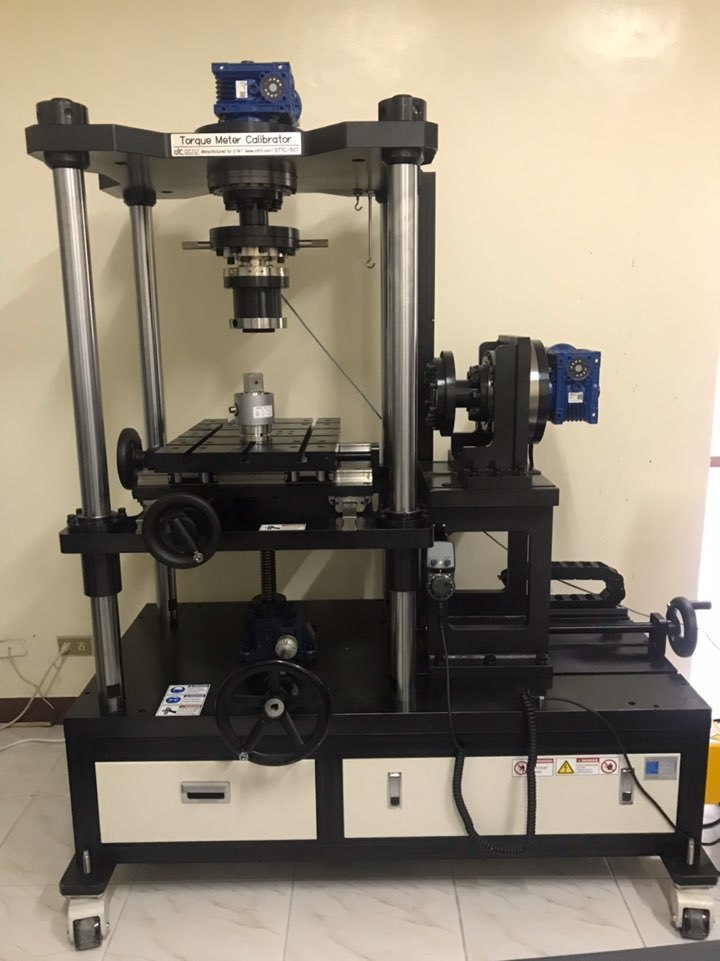

Torque meter calibrator
Designed to calibrator a torque meter
| 1) Type | : Servomotor control type of calibration system. | |||
| Data will be sent to PC | ||||
| 2) Measuring | : Torque Meter | |||
| 3) Dimension | : Have to discuss in accordance with HBM Torque Transducer size | |||
| 4) Set up torque sensor | : X-Y-Z 3 shift moving table (manual control) | |||
| : T-Bolt use | ||||
| 5) Loading type | : Servo motor and warm reducer (Vertical/Horizontal type 1 set/each) | |||
| : Harmonic reducer 300 vs 1 (1 set/each) | ||||
| 6) Max speed | : 0 ~ 5 rpm | |||
| 7) Measuring range | : ~ 2 kN.m (Torque Transducer + Indicator will be supplied by user) | |||
