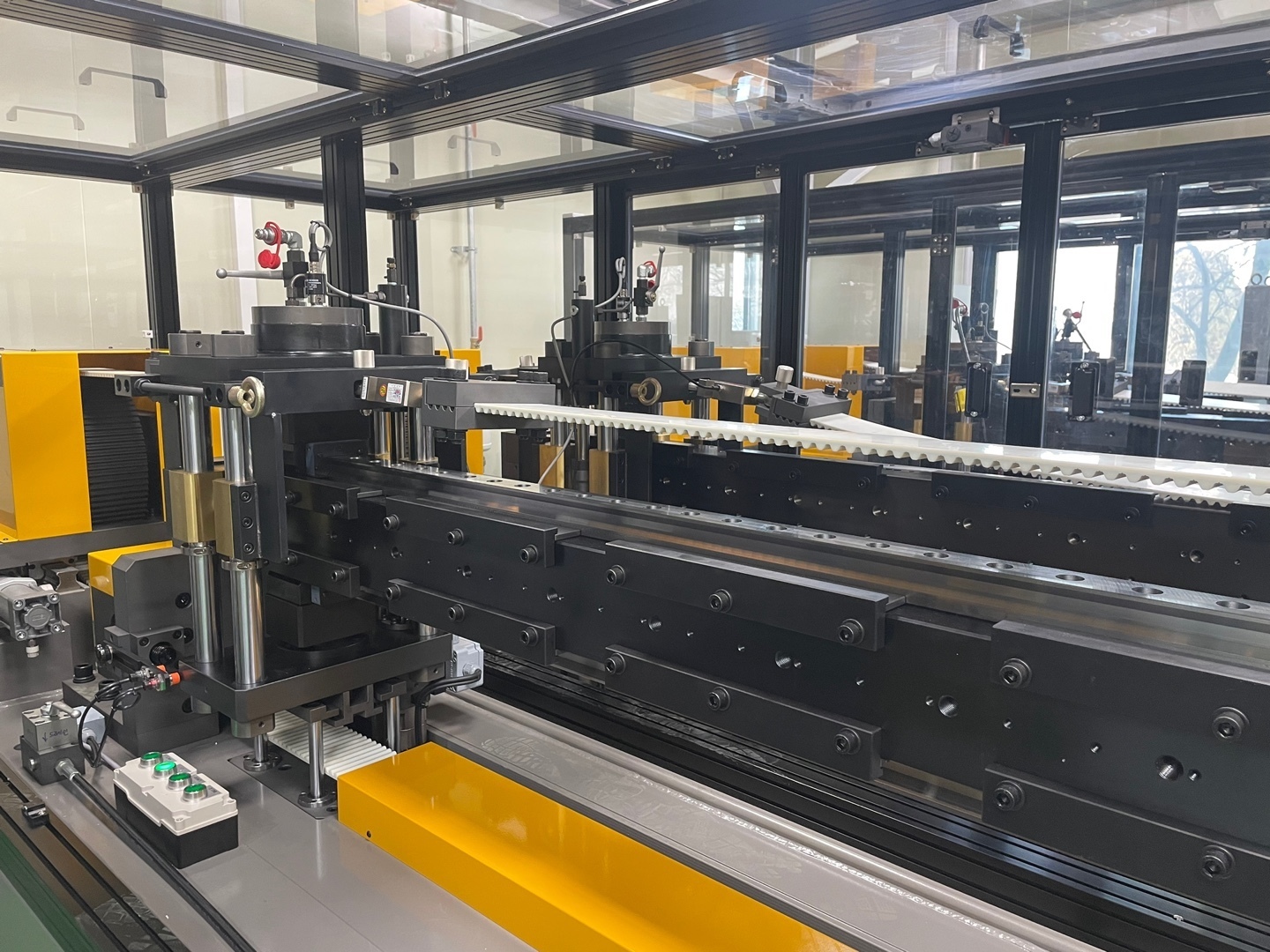

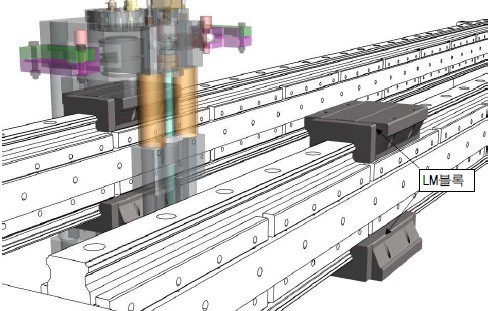

Linear-motion bearing (LM GUIDE) durability tester

It's a special tester to test durability of LM Guide in tough condition.

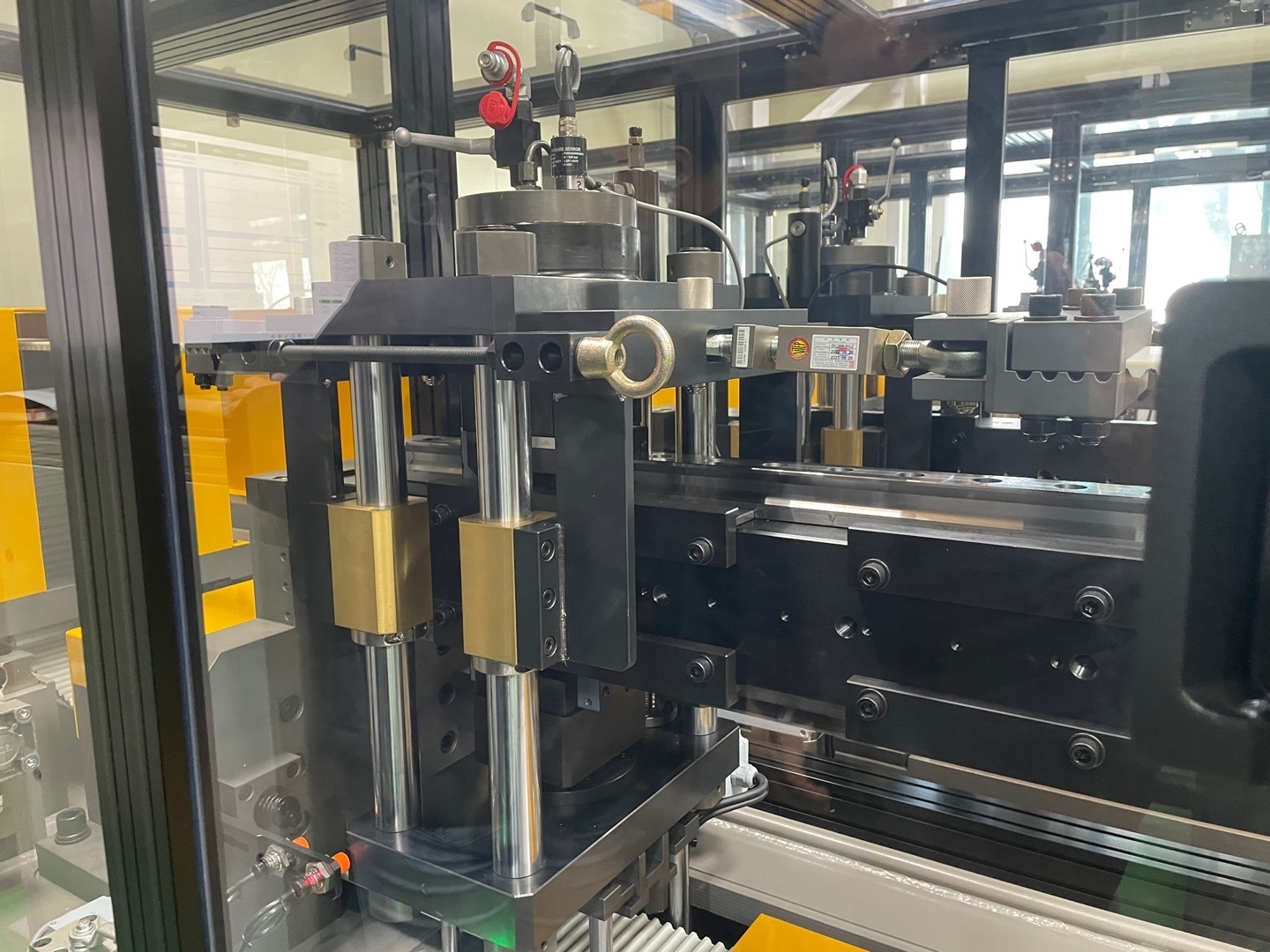

Euqipped with load cell which measures tension of the moving belt and adjust tension automatically during operation.

Purpose

 - Analysis of sample life during speed control exercise
 - Analysis of sample life during distance control exercise
 - Analysis of sample life during load control exercise
 - Analysis of sample life during vertical and horizontal movements
 - Identify and secure performance reference points according to the amount of deformation of samples
 - Validate the marketability in accordance with the purpose
 - Securing life expectancy and predicting life expectancy
 - Standardize and ensure efficiency
 - Research to ensure light weight, miniaturization, longevity, and efficiency
 - Securing productivity and new technologies

Specificaion

Length of rail : 4,000 mm

Max speed of block : 5m/s

Load on the each block : 200 kN max

Sample : #15, #20, #25, #30, #35, #45, #55, #65

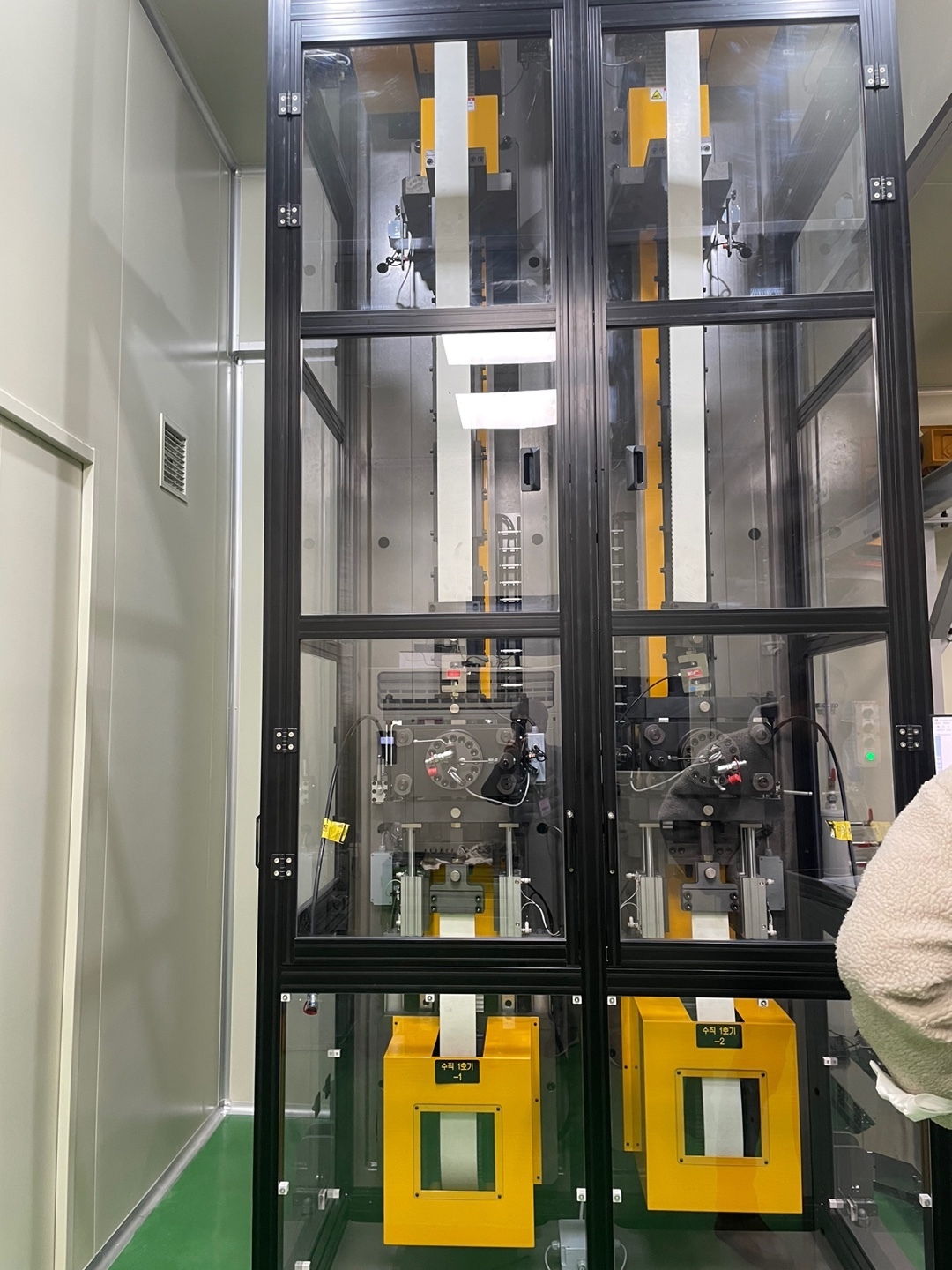

Test block : 4 Horizontal / 2 Vertical

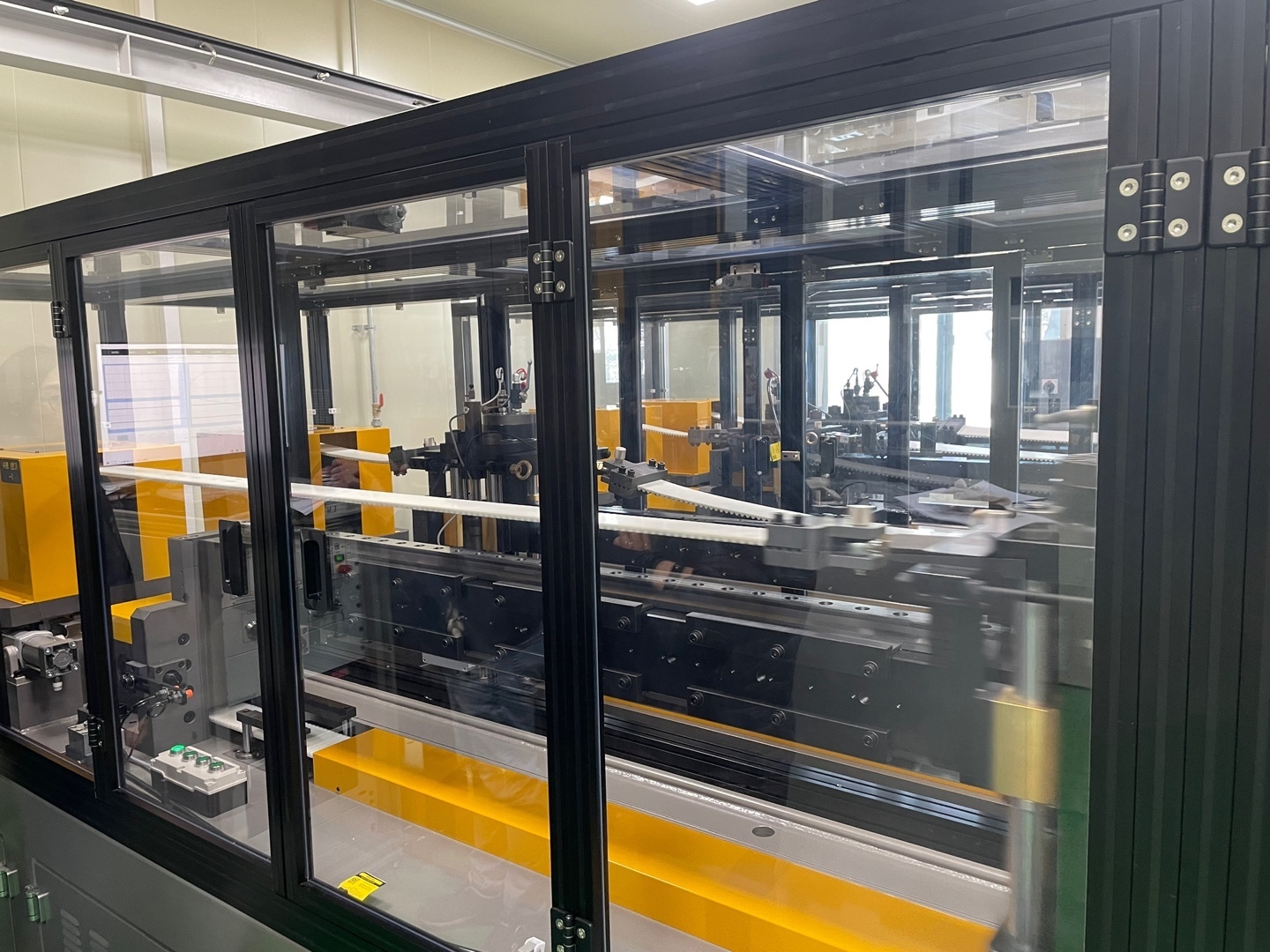

Photos
