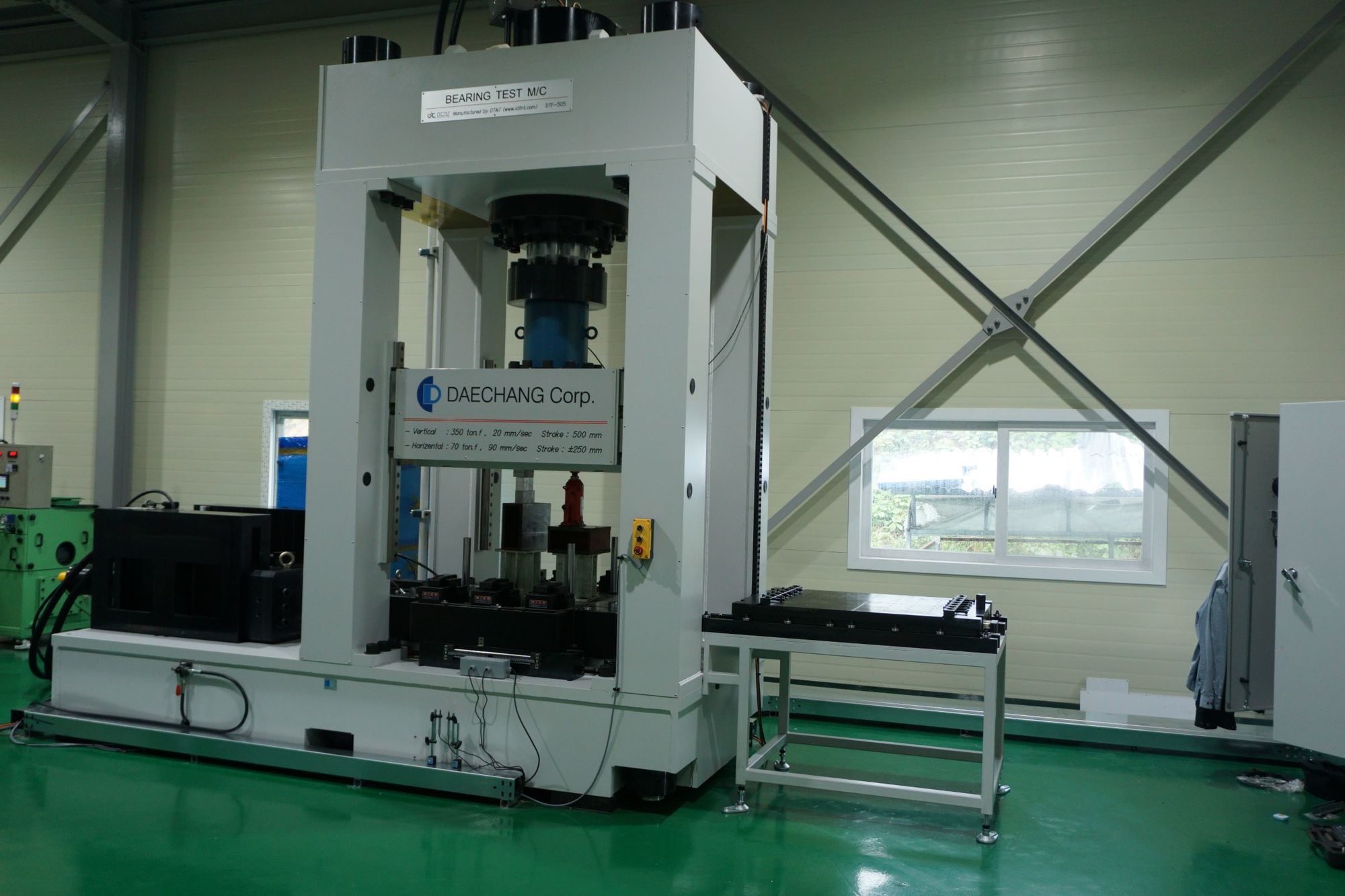

Pot bearing dynamic tester 3,500 kN + 700 kN

Designed to simulate the condition of pot bearings.

-PC software control

-Vertical force : 350 ton

-Horizontal force : 70 ton

-

Test Procedure

-Vertically press bearing pads

-Apply horizontal force under pressure

-Measure the force at 2 Axis

Control

-Horizontal dynamic stroke speed

-Static compression force

-Temperature (-30 ℃ ~ 50 ℃)

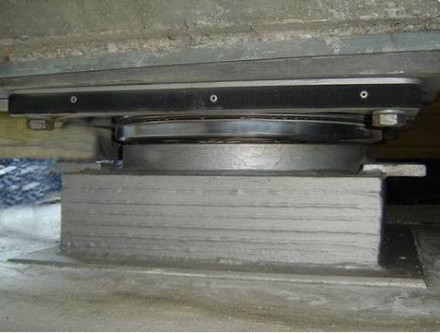

(Sample of pot bearing in bridges)
